1971 Mustang Mach 1 - Frankenstang

Bought: July 2010
Sold: NEVER!!



Mach 1 album on FB

So while I was in high school, my Mom decided to change careers and went to what's now Salt Lake Community College.  She had lots of friends, but one of her best friends (Mark) happened to have a really cool yellow '71 Mach 1.  Of course, I'm 14 at the time, and it was the coolest car in the world - I decided that someday I was going to have one of my own.

Fast forward to the summer of 2010, and I see the pictures above on Craigslist in San Angelo, Texas.  My pal Jim had just picked up a 1963 1/2 Ford Galaxie 500 XL (fastback) and was having lots of fun figuring out exactly what he'd just done by doing so (he got lucky with his and scored a really nice 'running' project car).  Since I had pretty much gotten the Jeep where I wanted it (minus the engine and transmission swap), I had the itch for a new project of my own.  If I hadn't found this Mach 1 during that time, I would still be looking for 'something' as a project, but at least now I can say I 'killed two birds' by restoring a dream I've had since high school.

We got almost finished up in October 2014 to the point of being "car show ready," and entered it in the annual Goodfellow Rec Camp Car Show.  It was a big hit, winning Best In Class - '70-'79 Modified.  I guess nobody noticed the missing seat belts, windshield wipers, exhaust tips, and non-functional signal lights.  Since then been working on the final details and got it road-worthy.  Check out the Mach 1 blog for more details on various things that have been going on (I'm still catching up on logging the restoration things, though).

The Goods
As purchased:

  • Engine: 351 Cleveland 2V
  • Tranny: Ford FMX automatic
  • Axle: Ford 9" w/3.00 gears
  • Tires: no-name Maypops
  • Wheels: 14x6 Chrome Mods
  • Lakewood old-school traction bars
  • Blackjack Headers (full of rust)
  • dual Cherry Bomb 'glass packs
  • Factory Ram-Air
  • Mach 1 trim package
  • Seized engine
  • Redneck gas tank hammock
  • Tons of cool old stuff in the trunk
  • "Fred Flintstone" floors and trunk
  • Rust everywhere - holes in front frame rails
  • nasty old upholstery and carpet
  • "Old Car Smell"
  • WAY over-valued by seller
  • No keys or title
  • As is (Restomod by me)
    Engine:
  • Original 351 Cleveland
        - Machine work by Winger's Automotive
        - Balanced, Blueprinted, Magnafluxed
        - Bored .060"
        - 3-angle valve job, mild port & polish

  • Edelbrock Performer intake
  • Edelbrock 1406 Performer 600CFM carb
  • Holley electric fuel pump
  • CompCams High-Energy 270/270 @ .566" roller cam
  • CompCams High-Energy lifters & pushrods
  • CompCams High-Energy 1.73 roller rockers
  • Crane Cams 7/16" screw-in rocker studs
  • Keith Black 9.5:1 hypereutectic flat-top pistons
  • Duraspark II ignition and distributor
  • Accel Super-Coil & 8mm wires
  • Hooker Competition ceramic-coated headers
  • Pypes Street Pro mufflers
  • Pypes 2.5" stainless exhaust with 'X' pipe
  • Pypes 2.5" chrome 'slash' tips
  • Chassis:
  • 1989 Mustang GT AOD transmission
  • Original 9" rear axle w/3.00:1 gears
  • Laurel Mountain Mustang Super Suspension Kit
        - 1" drop front coils
        - 1.5" 5-pack rear leafs
        - 7/8" rear anti-sway bar
        - KYB shocks

  • "Old School" Lakewood Traction Bars
  • Global West subframe connectors
  • Cragar S/S rims15x8 Front
  • Cragar S/S rims 15x10 Rear w/5.25" custom backspacing
  • Cooper Cobra Radial G/T 245/60R-15 front
  • Cooper Cobra Radial G/T 295/50R-15 rear
  • Front clip from a 1972 sportsroof
  • Replacement sheet metal from Ohio Mustang Supply
        - floor pans
        - trunk pan, drop-offs, tail light panel, rear crossmember
        - quarter panels, fenders, F & R valances, trunk lid
  • Interior & other cool stuff:
  • Rear window louvers
  • Power windows, locks, & mirrors
  • Classic Auto Air HVAC system
  • Retrosound Model 2 stereo w/hidden antenna
  • Rocketman clock-2-tach conversion
  • Mustang Project LED dashboard lights
  • Bosch ammeter-2-voltmeter conversion
  • TMI Sport Seat II upholstery
  • ACC cut-pile Mach 1 carpet
  • Lloyd's Mach 1 cut-pile floor mats
  • Pyle back-up camera
  • MTX Terminator 10" subs in custom box
  • MTX Terminator 400 watt amp
  • Factory full-length center console
  • 3M Di-Noc black carbon fiber vinyl trim
  • H4 headlights and relay kit
  • Custom auxillary circuit system
  • The Pics

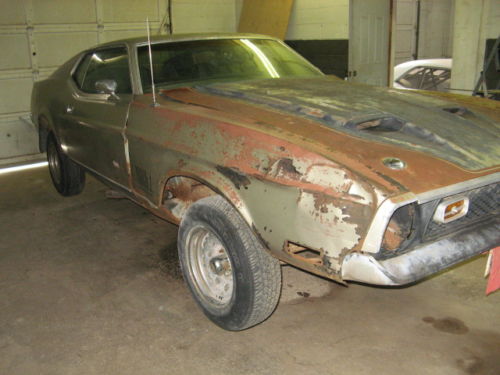

    The first pic I saw on Craigslist

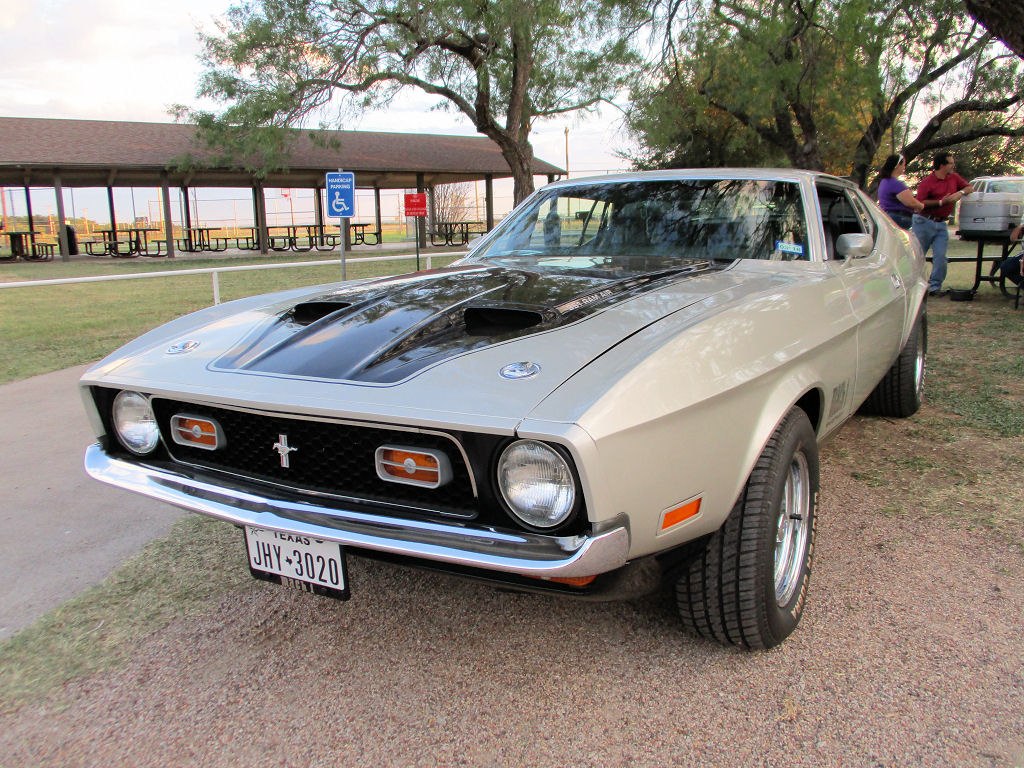

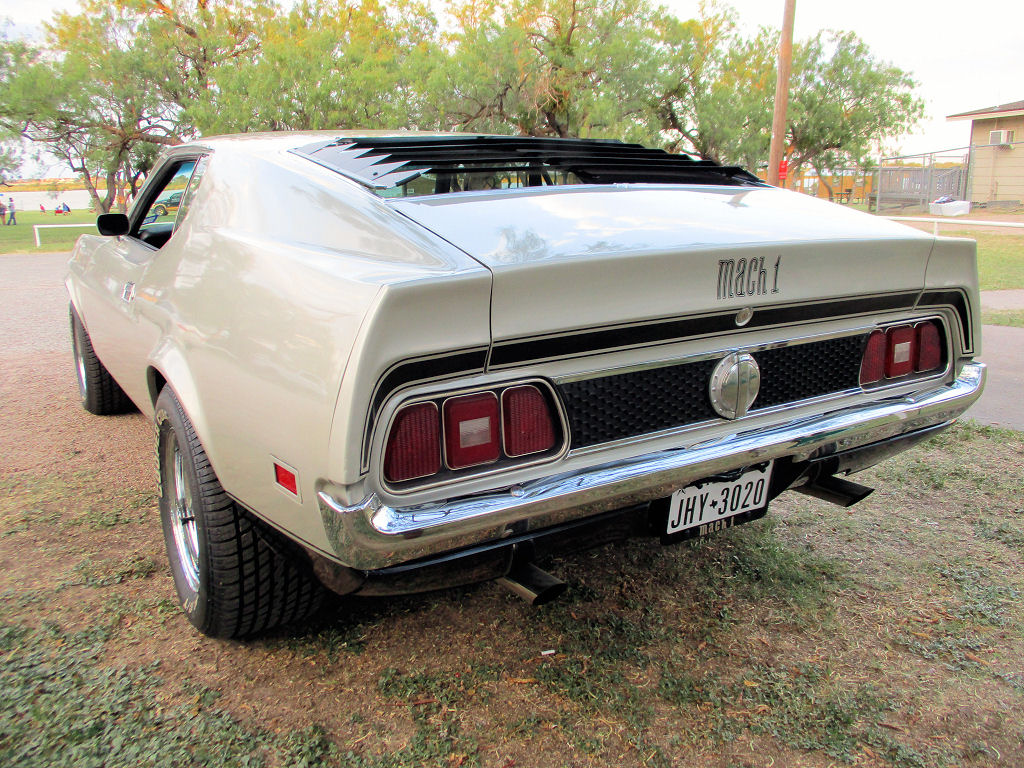

    As of October 2017:


    The Story
      It's in the blog!
